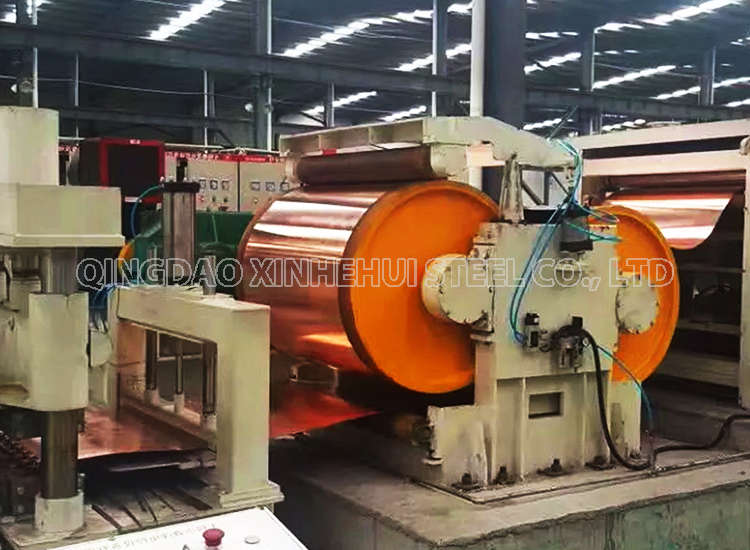

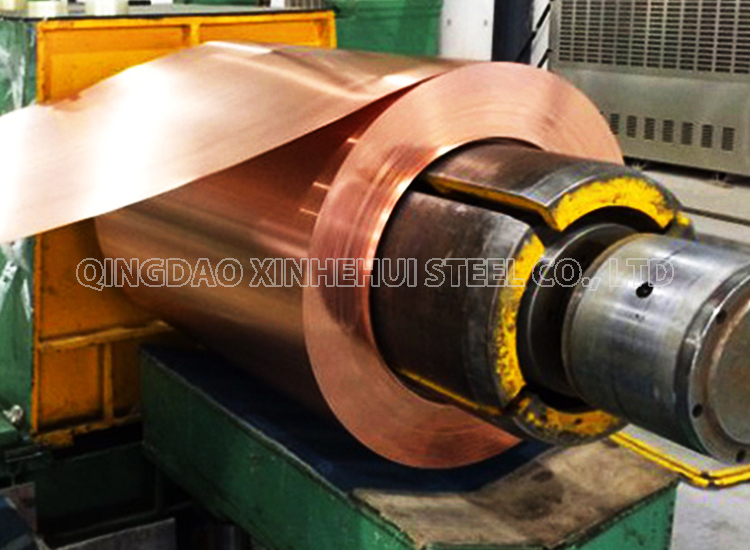

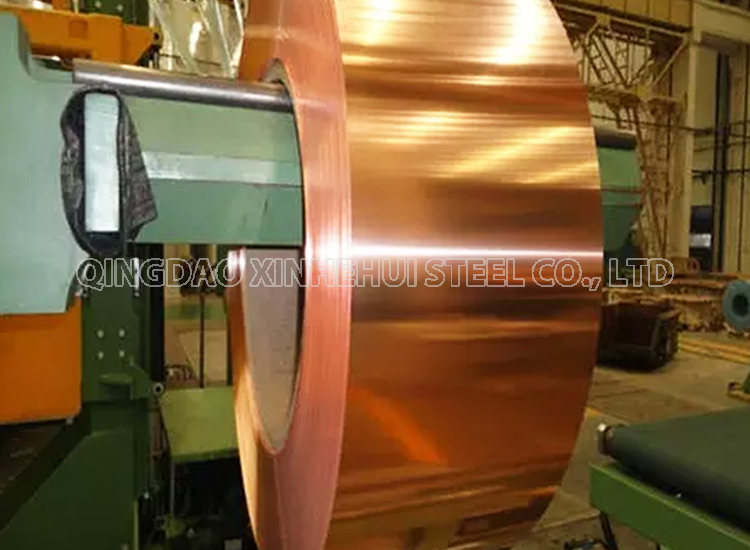

C11000 Copper Coil
WhatsApp：+86 19861976716
Email：sale1@xhh-metal.com
Qingdao City ，Shandong Province, China
INQUIRY NOW
CONTACT US
PRODUCT DESCRIPTION

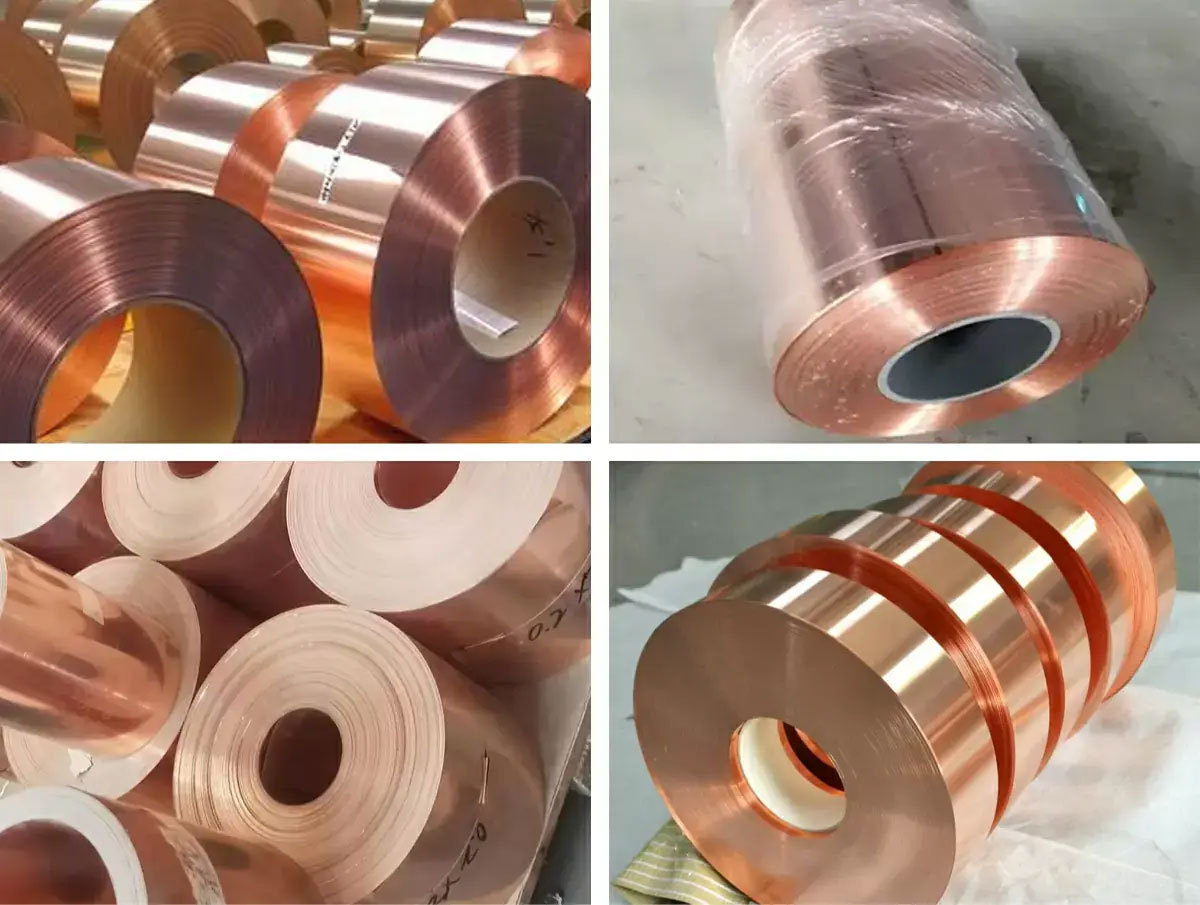

Product Name99.9% Copper Foil Strip / Tape in Coils
  Material   Copper/Brass
   Grade

T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920

,TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,TU1,TU2,

C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C22000,C23000,

C24000,C26000,C27000,C27400,C28000,C33000,C33200,C34000,C34200,C35000,C35600,C36000,C37000,C37700,

C37710,C38000,C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,etc.

  Shape  Plate, Strip, Coil
Thickness  0.1mm~3mm as customized
Width  7mm~1220mm as customized
Length2m,3m,5.8m, 6m, or as required.
Surfacemill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required.
Price TermEx-work, FOB, CFR, CIF, etc.
Payment TermT/T, L/C, etc.
Delivery Time7-14 Days
PackageExport standard package: bundled wooden box, suit for all kinds of transport,or be required.


Copper Strip Performance Parameter

Alloy GradeStandardChemistry Composition%Size Available
Cu+AgPBiSbAsZnFeNiPbSnSOOthersThincknessWidth
TU1GB≥99.97≤0.002≤0.001≤0.002≤0.002≤0.003≤0.004≤0.002≤0.003≤0.002≤0.000.04≤0.002≤0.030.10-6.00mm20-1020mm
TU2≥99.95≤0.002≤0.001≤0.002≤0.002≤0.003≤0.004≤0.002≤0.004≤0.002≤0.004≤0.003≤0.05
T1≥99.95≤0.001≤0.001≤0.002≤0.002≤0.005≤0.005≤0.002≤0.003≤0.002≤0.005≤0.02≤0.05
T2≥99.90-≤0.001≤0.002≤0.002≤0.005≤0.005≤0.005≤0.005≤0.002≤0.005≤0.06≤0.10
TP1≥99.900.004-0.012≤0.002≤0.002≤0.002≤0.003≤0.01≤0.005≤0.005≤0.002≤0.005≤0.01≤0.10
TP2≥99.850.015-0.04≤0.002≤0.002≤0.005≤0.003≤0.05≤0.01≤0.005≤0.01≤0.005≤0.01≤0.15
C1100JIS≥99.90------------
C1020≥99.96------------
C1220≥99.900.015-0.04-----------
QFe0.1GBRemains0.03----0.1------
KFC-C1921JISRemains0.03----0.1------



Material DesignationComposition in % (m/m)
ElementCu1AgBiOPPbOther elements (see note)
SymbolicNumericaltotalexcluded
Cu-ETPCW004Amax.99.90a------Ag, O
min.-
0,00050.040b-0,00050,03
Cu-FRHCCW005Amax.99.90a

----Ag, O
min.-

0.040b--0,04
Cu-OFCW008Amax.99.95a
-----Ag
min.-
0,0005-c-0,00050,03
CuAg0,10CW013Amax.Rest0,08-----Ag, O
min.-0,120,00050.040b--0,03
CuAg0,10PCW016Amax.Rest0,08--0,001--Ag, P
min.-0,120,0005-c0,007-0,03
CuAg0,10(OF)CW019Amax.Rest0,08-----Ag, O
min.-0,120,0005-c--0,0065
Cu-PHCCW020Amax.99.95a
--0,001--Ag, P
min.-
0,0005-c0,0060,00050,03
Cu-HCPCW021Amax.99.95a
--0,002--Ag, P
min.-
0,0005-c0,0070,00050,03
Cu-DLPCW023Amax.99.90a
-
0,005--Ag, Ni, P
min.-
0,0005
0,0130,00050,03
Cu-DHPCW024Amax.99.90a


0,015---
min.-


0,040--
NOTE - The total of other elements ( different from copper) is defined as the sum of Ag, As, Bi, Cd, Co, Cr, Fe, Mn, Ni, O, P , Pb, S, Sb, Se, Si, Sn, Te and Zn, with the exclusion of any of the elements whose value is indicated individually.
a including silver (Ag), up to a maximum of 0.015%b Up to 0.060% of oxygen content is permitted, subject to an agreement between client and supplier..c Oxygen content must be such that the material complies with the requisites for embrittlement by heating in a hydrogen atmosphere as in Norm En 1976.


DesignationsVolumen ResistivityΩ x mm2mmax.Resistivity massaΩ x gm2max.Conductivity
MaterialMetallurgical StateMS/mmin.% IACSbmin.
SymbolicNumerical
Cu-ETPCu-FRHCCU-OFCuAg0,10CuAg0,10(OF)Cu-PHCCW004ACW005ACW008ACW013ACW019ACW020AM0,017540,155957,098,3
H040R2000,017240,153358,0100,0
H040R220



H065R2400,017540,155957,098,3
H090R290



H110R3600,017860,158856,096,6
CuAg0,10PCu-HCPCW016ACW021AM0,017860,158856,096,6
H040R2000,017540,155957,098,3
H040R220



H065R2400,017860,158856,096,6
H090R290



H110R3600,018180,161655,094,8
NOTE 1 - The IACS % values are calculated as percentages of the normalized value of high conductivity annealed copper, according to those established by the International Electrotechnical Commission. Copper whose volume resistivity is of 0,017 24 Ω x m, at 20ºC, is defined as that corresponding to a conductivity of 100%.
NOTE 2 - 1 MS/m is equivalent to 1 m/(Ω x mm2).
a Calculated with a copper density of 8.89 g/cm3b IACS: International Annealed Copper Standard
ENDINASTMAFNORBSJISSN
SymbolicNumericalSymbolicNumerical
Cu-ETPCW004AE-Cu5820065C11000CuA1C101C1100Cu-ETP
Cu-OFECW009A--C10100CuC2C110-Cu-OFE
Cu-OFCW008AOF-Cu2.0040C10200CuC1C103C1020Cu-OF
Cu-HCPCW021ASe-Cu2.0070-----
Cu-PHCCW020ASe-Cu2.0070C10300---Cu-HCP
Cu-PHCECW022A-------
CuAg0,10CW013ACuAg0,102.1203C10700----
C10940
C11600
CuAg0,04PCW014A--C11904----
CuAg0,10PCW016ACuAg0,1P2.1197C11907---CuAg0,1P
Cu-DHPCW024ASF-Cu2.0090C12200CuB1C106C1220-
C1221
Cu-DLPCW023ASW-Cu2.0076C12000CuB2--Cu-DLP
CuTePCW118CCuTeP2.1546C14500CuTe 1336C109-CuTeP
CuFe2PCW107CCuFe2P2.1310C19400-CW107C--
Cu-SCW114CCuSP2.1498C14700Cu-S 1336C111-Cu-S
